What is photovoltaic mounting? What are the solar photovoltaic racking components and classification?

What is a photovoltaic mount:

Solar PV bracket is a special bracket designed for placing, mounting and fixing solar panels in solar PV power generation system. The general materials are aluminum alloy, carbon steel and stainless steel. As a solar PV racking manufacturer, the main material of our PV racking is aluminum alloy.

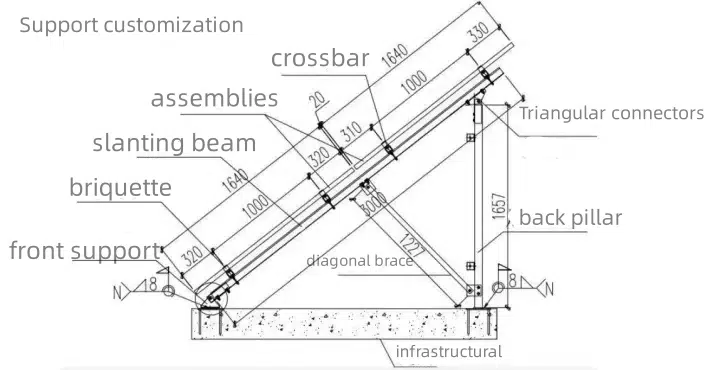

What are the solar PV mounting components:

1.Racking

A system for supporting photovoltaic modules. Risers made of metal materials. Supports . Beams . Shafts . In order to follow the path of the sun, slides and accessories can also be equipped with transmission and control components.

2. Fixed mounts

Brackets that cannot be adjusted for inclination and direction.

3. Dual-axis tracking mounts

The mount rotates around an axis to track the sun.

4.Two axis tracking bracket

A bracket that rotates around two axes to track the sun.

5.Riser

Beam plate connected to the foundation . Shafts, slides and other components.

6.Support

Used to strengthen the uprights . Beam and slide stabilizer rail stability.

7.Beam

Components that support the slide rail.

8.Shaft

Component for supporting the slide rail and adjusting the angle of the slide rail (for tracking bracket).

9.Slide rail

Components that support the photovoltaic power generation module.

10.Crankshaft

Mechanical transmission component used between the bracket and the power unit (for photovoltaic tracking brackets).

11.Fittings

Refers to the connection between straight, linear and curved segments used to form a continuous photovoltaic support system to fix or supplement the straight segments . Functional components of the bending. Bracket accessories are divided into: linear fixed plate. Screw connection plate. Bending fixing plate. Variable viewing angle fixing plates. Wall. Pressure plate. Fasteners.
