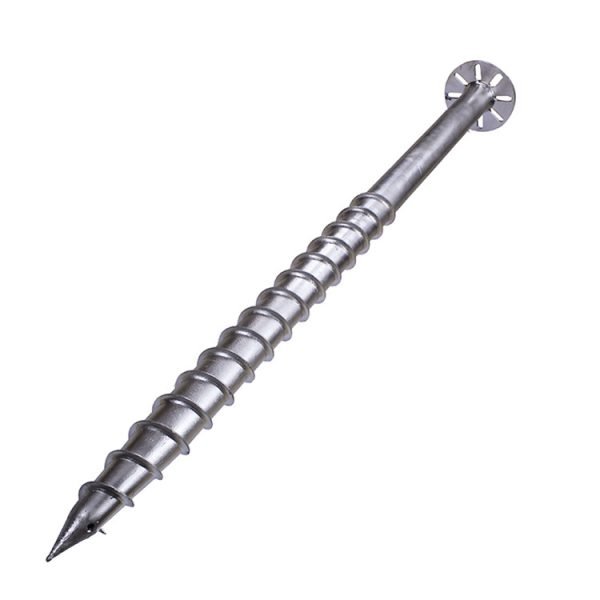

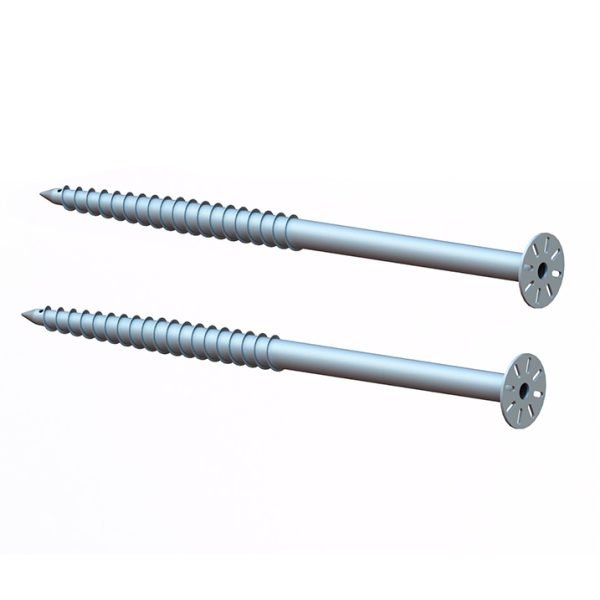

Solar ground screws

The ground screw foundation is an ideal solution for ground mounted renewable energy technology as it provides the following benefits:

Suitable for all terrain including sloping hills and soil types

1. Significant cost savings through time taken to construct

2. No digging, no excavation, no waste, no concrete or wet trades

3. Complete construction and foundation solution

4. Fast and accurate insertion of ground screw

5. Statistically tested and certified by independent testing institutions for load, pull and wind load according to stringent guidelines

6. Easy to install

7. Sustainable ground engineering – no sealing or covering of surface or negative impact on landscape

8. Durable and long lasting

9. Easily removable and reusable

China galvanized steel ground screw

Technical Information

Material	Hot-galvanized Steel Q235
Length	500mm-3500mm, Customized
Diameter of Pipe	480-114mm, 76mm is the most common use type
Thickness of Pipe	2.75mm/3mm/3.5mm
Surface Finished	Hot-dipped Galvanized
Installed Site	Open Filed or Ground
Warranty	12 Years

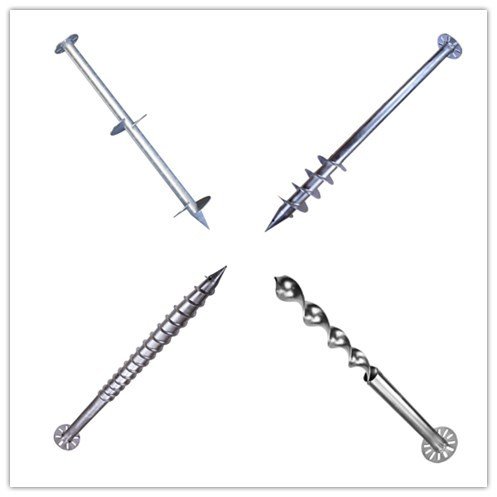

Popupar Type Screw Pile Series

1200mm galvanized steel ground screw common types

Project Reference

Wanhos Solar Ground Screw Pile Foundations are a robust and sustainable alternative to traditional concrete foundations, eliminating the need for excavation and concrete. Other applications for ground screw pile foundations include signage, timber construction and fencing.
