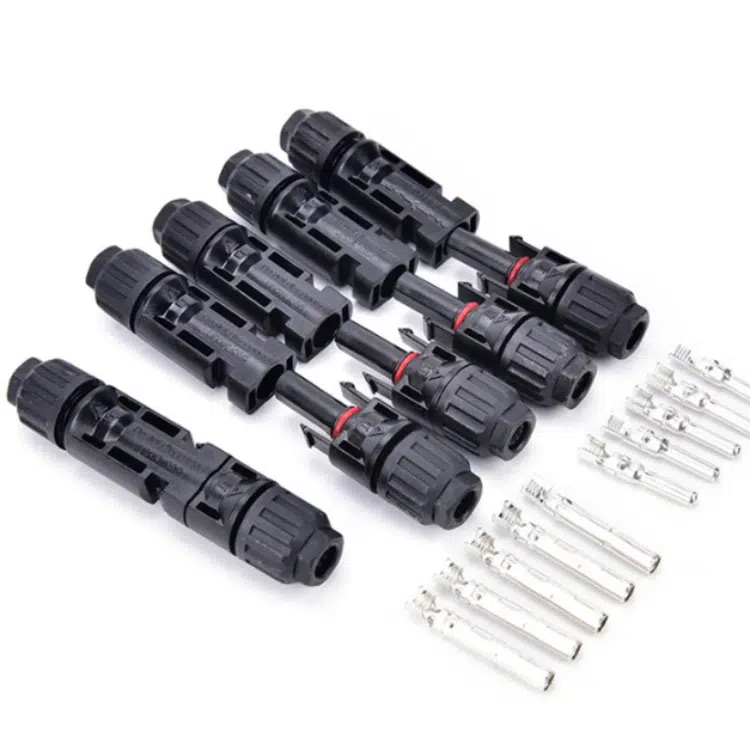

mc4 solar panel connectors

mc4 solar panel connectors are designed to provide robust connections and withstand extreme weather conditions.
Easy to install and operate, they are ideal for residential and commercial solar panel systems.
Designed to fit both male and female wires, ensuring correct polarity and preventing any electrical shorts.

Send Enquiry

mc4 solar panel connectors are an essential part of any solar panel system. They provide a reliable, secure connection that ensures maximum efficiency and safety. With their easy installation and durable design, MC4 connectors have become the industry standard for solar panel electrical connections. The use of MC4 connectors in solar panel systems maximizes efficiency.

Technical Parameters

Connector system	Ø 4 mm
Rated voltage	1000 V DC/1500 V DC (TÜV) 1) 600 V DC/1000 V DC/1500 V DC (UL)2) 1500 V DC (JET)3)
Rated current TÜV85 °C)	39 A (2.5 mm²/14 AWG) 45 A (4.0 mm²/12AWG) 53 A (6.0 mm²/10AWG) 69 A (10.0 mm²/8 AWG)
Rated pulse voltage 12 kV (1000 V)	12kV (1000 V) 16kV (1500 V)
Ambient temperature range	-40 °C …+85 °C (TÜV/UL)
Upper-temperature limit	115 °C (TÜV)
Protection class, inserted unplugged	IP65/IP68 (1h/1m) IP2X
Overvoltage category/contamination class	CAT III/3
Connector contact resistance	≤0.2 mΩ
Safety class	II
Connection system	MULTICAM
Connection type	Crimp
Contact material	Copper, tinned
Insulation material	PA
Locking system (UL)	recessed
Flame retardant class	UL94-V0
Ammonia resistance (in accordance with DLG technical regulations)	Q60095359

mc4 solar panel connectors are extremely reliable and durable. They are made from high-quality materials that are resistant to UV radiation and harsh weather conditions. This ensures that the connectors can withstand extreme temperatures, making them ideal for solar panel systems in any climate.
