High Quality Ground Screw Suppliers

Hot-dip galvanizing is a process of coating steel with a layer of zinc to protect it from corrosion. This process is commonly used in the manufacturing of solar ground piles, as they are exposed to harsh environmental conditions. The galvanized coating enhances the durability and extends the lifespan of the ground piles, making them more reliable for solar panel installations.

Technical Data

Brand	Wanhos

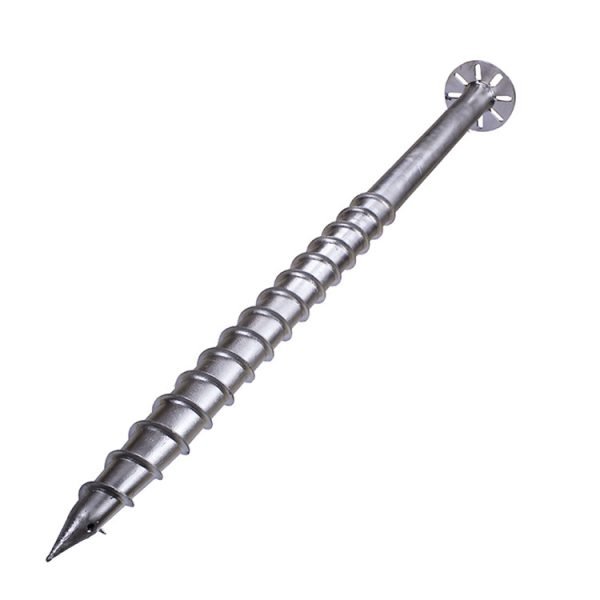

Product Name	Solar Mount Ground Screw
Land Type	Ordinary Ground,Uneven Land,Mellow or Sandy Ground,Hard Soil
Material	Q235
Color	Natural
Item NO.	WN76-1600-T3.0
Order(MOQ)	10
Payment	EXW/FOB/CIF/DDU/DDP
Certificate	ISO9001:2008,DIN,SGS,TÜV
Max Wind Speed	60m/s
Max Snow Load	Up to 1.4KN/㎡
Module Angle	0-30 Degree
Panel Orientation	Portrait/Landscape
Lead Time	7 days
Warranty	12 Years
Duration	More than 25 Years

Specification:

Item No.	Length	Diameter	Flange	Material
WN-76-1200	1200mm	76mm	200mm	Q235B
WN-76-1400	1400mm	76mm	200mm	Q235B
WN-76-1600	1600mm	76mm	200mm	Q235B
WN-76-1800	1800mm	76mm	200mm	Q235B
WN-76-2000	2000mm	76mm	200mm	Q235B
WN-76-2500	2500mm	76mm	200mm	Q235B

Product Application

solar ground piles is a versatile solution for ground-mounted solar installations. It is ideal for commercial, industrial, and utility-scale solar projects, offering flexible and customizable designs to meet specific project needs. The system provides reliable and durable support for solar panels, maximizing energy output and minimizing maintenance costs. With its easy and fast installation process, it is an excellent choice for large-scale solar projects in various terrains, including uneven or sloped ground. Its compatibility with different types of solar panels and inverters makes it an efficient and cost-effective solution for solar energy production.

Company Informations

Wanhos Solar members devote themselves to research, design, manufacture and sell the high quality, recyclable, steady, trustable and cost-efficient solar PV mounting system solutions, which have gotten ASNZS1170, ISO9001, SGS, TUV, etc. certificates.

Our Certificates
