Carbon Steel Mount Solar

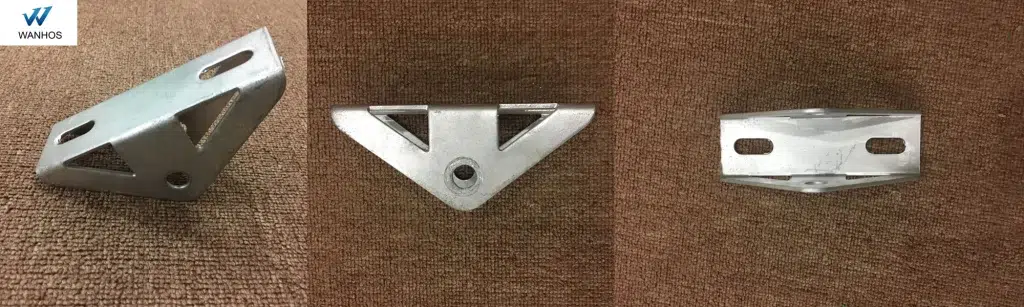

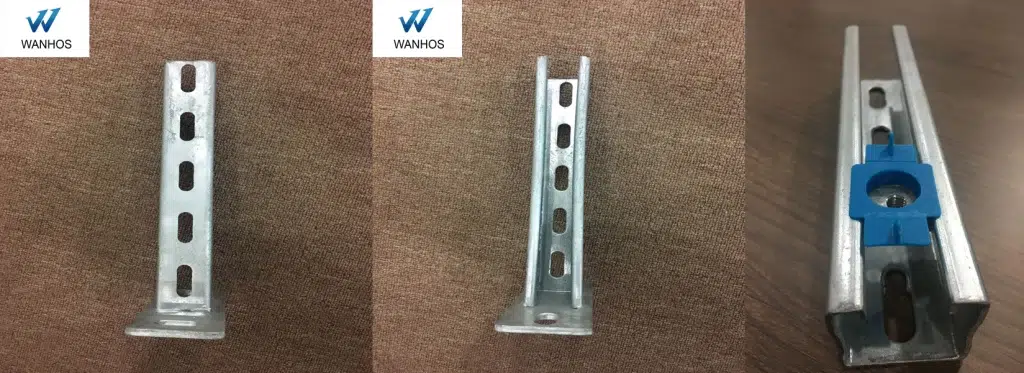

Carbon Steel Mount Solar is a special bracket designed for placing, mounting, and fixing solar panels in solar photovoltaic systems. The general materials are aluminum alloy, carbon steel, and stainless steel. Q235B hot dip galvanized channel steel is suitable for flat roofs and ground level, and the components required for installation are specially designed for it, including center clamp, end clamp, rail (u/c channel steel), rail joints, diagonal braces, diagonal beams, base brackets, triangular hinges, and fasteners. This rail assembly is compatible and easy to install, saving installation time and cost for users. Strict quality control ensures the performance and longevity of the product, and the system is compatible with most PV mounts on the market. The solar PV racking system requires no re-welding and no re-drilling, 100% adjustable and 100% reusable.

Technical Information

install Site	Low profile roof of open field
Tilt Angle	10deg-60deg
Building Height	Up to 20m
Max Wind Speed	Up to 60m/s
Snow Load	Up to1.4KN/m2
standards	AS/NZS 1170 & DIN 1055 & Other
Material	Anodized aluminum&Galvanized steel
Color	Natural
Anti-corrosive	Anodized&Galvanized
Warranty	Ten years warranty
Duration	More than 20 years
